Angle Bars

Home    Angle Bars

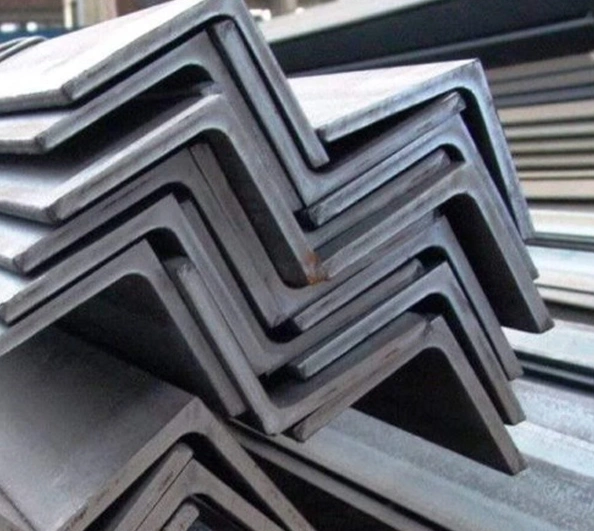

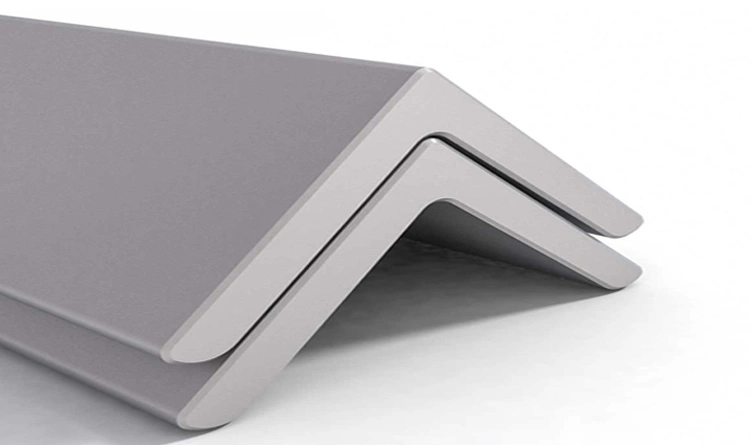

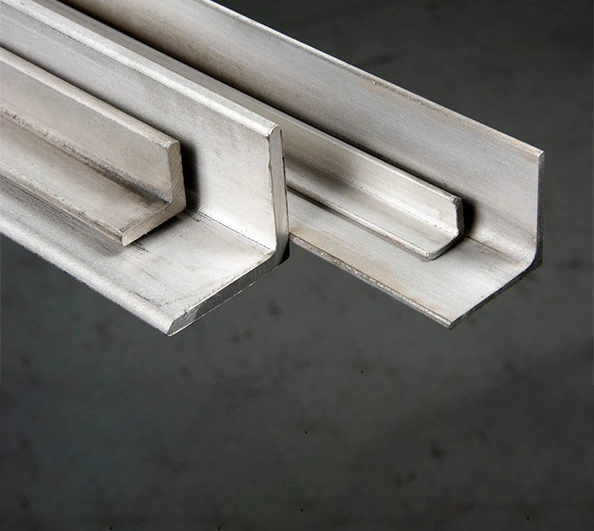

Steelage Alloys offers a wide range of Stainless Steel Angle Bars that provide superior strength, corrosion resistance, and structural support for various industrial and construction applications. These angle bars are available in equal and unequal sizes and are widely used in frames, supports, racks, brackets, reinforcement structures, and architectural applications.

Manufactured using premium-grade stainless steel, our angle bars are ideal for both indoor and outdoor use, thanks to their durability and resistance to rust and chemical exposure. With options for hot-rolled, cold-drawn, and custom-finished profiles, Steelage Alloys ensures every angle bar meets the highest standards of precision and performance.

Corrosion Resistant

Trusted Supplier

Bulk Orders

Features

  • High Load-Bearing Strength & Rigidity
  • Excellent Corrosion & Oxidation Resistance
  • Available in Equal & Unequal Angles
  • Smooth Finish – Ideal for Exposed Structures & Fabrication
  • Easy to Cut, Drill, Weld, and Form
  • Custom Lengths, Sizes & Finishes Available
  • Conforms to ASTM, ASME, and International Standards

Specifications

Dimension :

  • Equal Angle Bar Dimensions: (mm) 20×20×3; 25×25×3, 25×25×4; 30×30×3, 30×30×4, 30×30×5, 30×30×6; 40×40×3, 40×40×4, 40×40×5, 40×40×6; 50×50×4, 50×50×5, 50×50×6; 60×60×5, 60×60×6; 65×65×5, 65×65×6, 65×65×7, 65×65×8; 70×70×6, 70×70×7, 70×70×8; 75×75×6, 75×75×7, 75×75×8, 75×75×9; 80×80×8, 80×80×9, 80×80×10; 100×100×8, 100×100×9, 100×100×10, 100×100×12 Size 100x100 above until 150x150 can be customized.

Standards

  • ASTM A276
  • ASTM A484M
  • DIN 1028
  • EN10056
  • GB4227

Applications

  • Home appliances
  • Electric appliances
  • Construction materials
  • Medical equipment
  • Auto part
  • Petroleum
  • Chemical application
  • Agricultural irrigation
  • Edible oil refinery factories
  • Paper plants
  • Shipyard
  • Nuclear power plant

Main Grades

SS 202

SS 304

SS 304L

SS 316

SS 316L

Manufacturing Process

Angle Bar

hastelloy round bar

Steel Making

Cut to Length

Ingot Casting

Analytic

Ingot

Heating

Heating

Heating

Continuous Hot Rolling

Perforation

Square Billet

Pickling

Hot Rolling

Inspection of Surface

Angle Bar

Lubricating

Cooling

Cold Drawing (Cold Rolling)

Straightening

Degreasing

Pickling

Annealing

Sand Blasting

Analytic

Inspection

Analytic

Analytic

Marking

Marking

Packing & Shipping

Packing & Shipping

Drawing & Formula

Formula (A × 2 - THK) × THK × L (m) × 0.00793 * For 316, 316L, 310S, 309S, etc., ratio=0.00798. For 400 series stainless steel, ratio=0.00775 A = Side width, THK = Thickness, L = Length

Package

Plastic Bag

Wooden case

Logistics

By Sea

By Air
